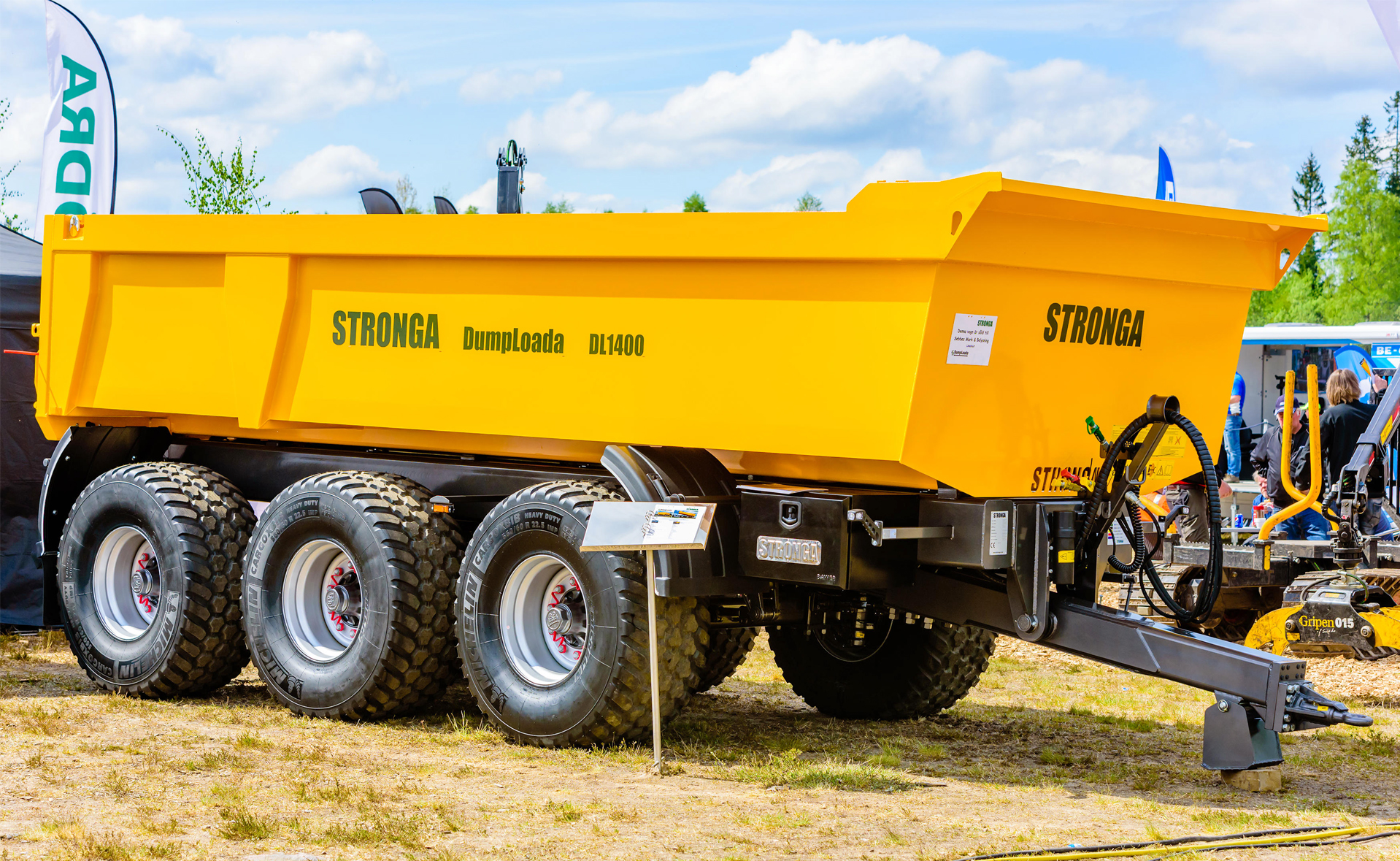

DumpLoada DL1400

King of the construction sector. Big output. Big productivity gains.

Order now >

Your reliable dump trailer manufacturer

Designed to meet the demands of the most extreme, high output operations, DumpLoada DL1400 is a robust, heavy-duty dump trailer that excels on large-scale construction projects. Using DL1400, you'll move more materials faster, work harder in tough conditions, and navigate roadways or difficult terrain with ease.

Design with intent

Ultra-light, high-grade, wear-resistant Hardox body.

King of productivity

Kick-start efficiency with a huge 27t payload.

Go where others can’t follow

The frame and body utilises lightweight, high-grade, wear-resistant Hardox 450 steel that reduces the total weight of the trailer, meaning less horsepower is required to move heavy materials.

Ideal for construction sites, mining and quarrying, DL1400 trailers offer excellent driving stability, equal weight distribution and superior traction along with additional load capacity and better productivity.

Flexible, agile & heavy duty dump trailer

The DL1400 tipper trailer has a flexible and agile undercarriage which ensures that all wheels have permanent ground contact so you can achieve extreme performance in off-road conditions.

A precision-engineered chassis and body shape provides a class-leading low centre of gravity which increases lateral stability and eliminates the need for wide, low profile tyres.

Standard Specifications

BPW all rigid commercial axles, 410x180 brake axles, 150x150mm square beam, 10 stud.
36t parabolic sprung suspension. 1525mm distance between dump trailer axles. Springs under axles.
Multi-position sprung drawbar for high comfort at speed.
Powerful hydraulic brakes on all wheels.
445/65 R22,5 radial tyres. Load rating per tyre:

7000 kg @ 105 km/h
Hard plastic quarter mudguards, front and rear.
2 x rear rubber mud-flaps.
Multi-position rear removable round bumper.
Single top-hung rear dump trailer door with hydraulic flip back.
Brackets with lock for the rear door in the front of the heavy duty dump trailer box.
3 position plate for bolting towing eyelet.
Swivel towing hitch. STR type. 50mm diameter eyelet.
HARDOX 450 steel. 10mm heavy duty dump trailer floor. 8mm heavy duty dump trailer sides.
12 V electric system. Sealed loom. All lights super-bright LED.
Cable-type hand brake.
Suspended drawbar shoe with stowage point.

Optional Equipment

STR-211


BPW free steering rear axle, 420x180 brake axles, 150x150mm square beam, 10 stud, 2150mm track.

STR-211


BPW free steering front axle, 420x180 brake axles, 150x150mm square beam, 10 stud, 2150mm track.

STR-302


Load sensing for hydraulic brakes.

STR-303


WABCO air brakes on all wheels of the heavy duty dump trailer.

STR-304


Load Sensing Valve (LSV) for air brakes.

STR-305


Dual air and hydraulic brake system.

STR-307


Automatic slack adjusters.

STR-308


Load Sensing Valve (LSV) for hydraulic suspension.

STR-505


Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.

STR-506


Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.

STR-409


Air suspension with height controlling valve.

STR-410


Hydraulic suspension for optimum heavy duty dump trailer axle travel. Watch video >

STR-411


Front lift axle - Only with air or hydraulic dump trailer suspensions. Watch video >

STR-508


Hydraulic drawbar for easy tipper trailer levelling and high comfort. Watch video >

STR-707


Electronic Power Steering (EPS) for excellent efficiency and safety in heavy material applications. Watch video >

STR-802


Other tyre brands and tyre sizes available.
Contact us for more information >

STR-1000


Lockable steel toolbox. Various sizes available.
Contact us for more information >

STR-1001


Aluminium side protection rails.

STR-1037


Two super-bright LED working lights at the rear of the heavy duty dump trailer.

STR-1002


Rear towing eyelet mounting plate for VBG rear drawbar.

STR-1038


Rear mounted hydraulic brake connection.

STR-1039


Rear mounted light connection 7-pin socket.
Model DumpLoada DL1400
Gross weight 34000kg
Tare weight ca. 7000kg
Maximum Payload 27000kg
Drawbar load 3500kg (4000kg*)
Sprung suspension capacity 36000kg
Standard transport capacity 18,5m³
Lift capacity of step 1 at 180 bar 49,4 tonnes
Oil requirement 45 litres
Minimum draft requirement 140kW (190HP)
Hitch height 510-550-590mm
Bottom tickness 10mm HARDOX 450
Side tickness 8mm HARDOX 450
Body height inside 1300mm
Body length inside 5980mm
Total length 7570mm
Total height 2875mm
Total height at 65" 7525mm
Maximum width (standard wheels) 2550mm
Standard wheels 445/65 R22,5
Colour Yellow
Speed 40km/h

All weights and measurements are subject to heavy duty dump trailer specification and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.
