DumpLoada DL1200

Get ready to work

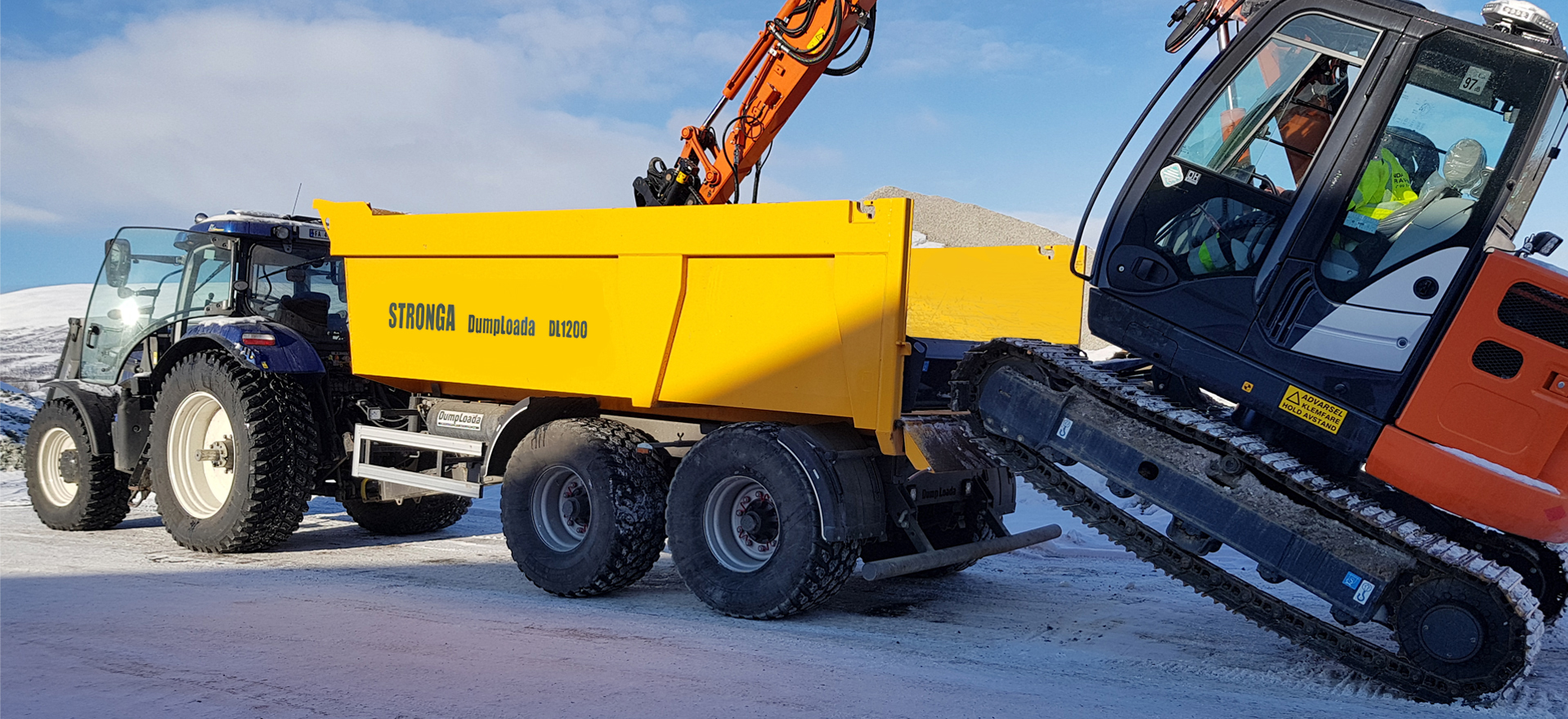

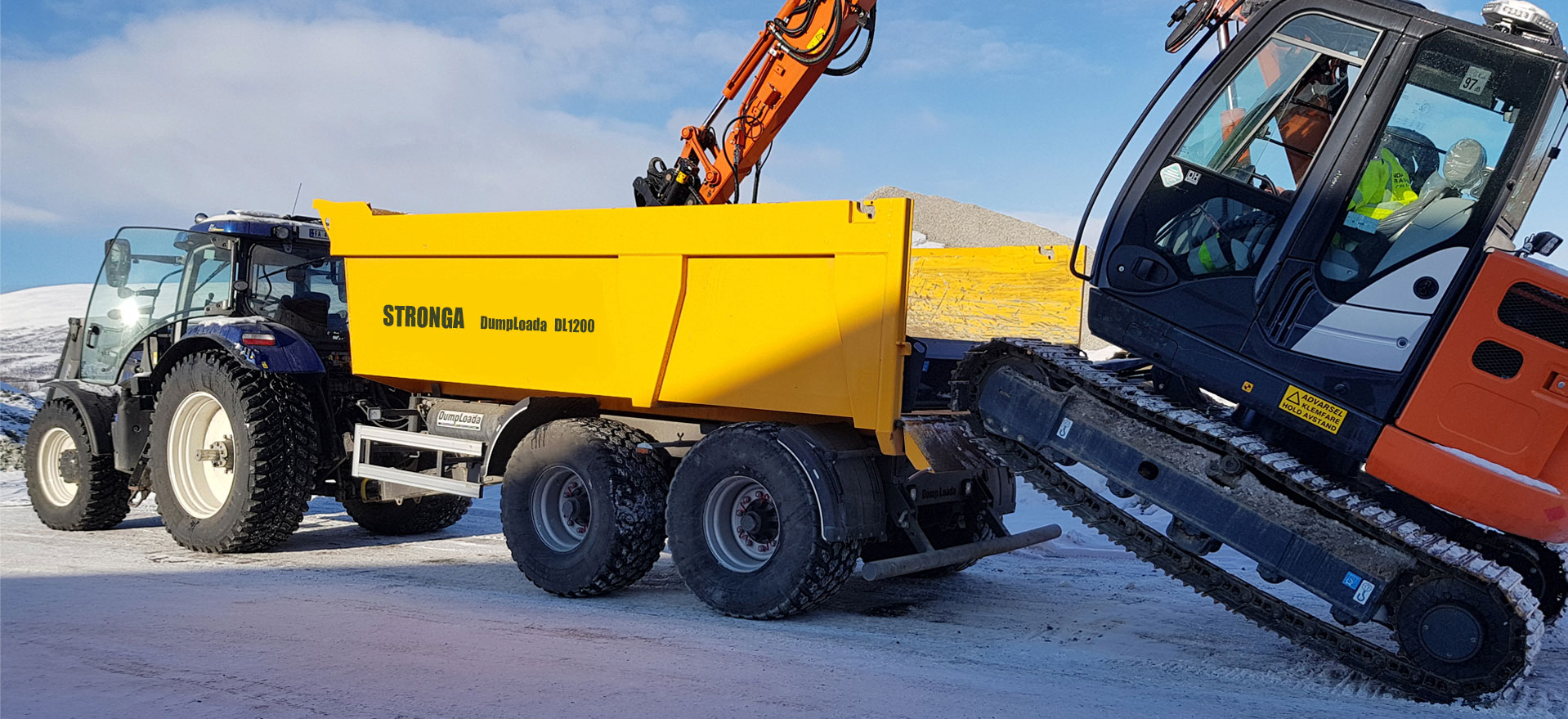

Get ready to work with the high capacity, heavy-duty DL1200 earth moving tipper trailer. Designed for optimised service life, reliability and durability; hauling is easier, safer and more efficient than ever before using the DL1200 trailer. With a 15m³ standard transport capacity; DL1200 offers the largest carrying capacity from a tandem-axle tipper in the market.
15m³ standard transport capacity
The best tipper just got better
Is that even possible?
Biggest tandem-axle tipper
Loaded with exclusive innovations, high performance components and technical advantages, these hardworking heavy duty tipper trailers deliver more on a regular basis. The DL1200 earth moving tipper trailer can move more tonnes per hour, giving 100% in all conditions. The 2nd largest tipper in the market has a bigger payload to thrive in your heavy material application.



Haul with confidence
Each Stronga earth moving tipper trailer is built for tough conditions at speeds of up to 40 kilometres per hour. With sure-footed traction, maximum ground contact and a wide-opening hydraulic tailgate, the DL1200 trailer is ideal for high output applications such as road building projects, mass excavation, mining and quarrying.
Standard Specifications





7000 kg @ 105 km/h











Optional Equipment

STR-302
Load sensing for hydraulic brakes.

STR-303
WABCO air brakes on all dump trailer wheels.

STR-304
Load Sensing Valve (LSV) for air brakes.

STR-305
Dual air and hydraulic brake system.

STR-307
Automatic slack adjusters.

STR-308
Load Sensing Valve (LSV) for hydraulic suspension.

STR-505
Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.

STR-506
Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.

STR-409
Air suspension with height controlling valve.







STR-1001
Aluminium tipper trailer side protection rails.

STR-1037
Two super-bright LED rear working lights.

STR-1002
Rear towing eyelet mounting plate for VBG rear drawbar.

STR-1038
Rear mounted hydraulic brake connection.

STR-1039
Rear mounted light connection 7-pin socket.
Model | DumpLoada DL1200 |
---|---|
Gross weight | 24000kg |
Tare weight | ca. 6000kg |
Maximum Payload | 20000kg |
Drawbar load | 3000kg (4000kg*) |
Sprung suspension capacity | 21000kg |
Standard transport capacity | 15m³ |
Lift capacity of step 1 at 180 bar | 38,4 tonnes |
Oil requirement | 29,4 litres |
Minimum draft requirement | 125HP |
Hitch height | 510-550-590mm |
Bottom tickness | 8mm HARDOX 450 |
Side tickness | 6mm HARDOX 450 |
Body height inside | 1200mm |
Body length inside | 5150mm |
Total length | 6750mm |
Total height | 2650mm |
Total height at 65" | 6500mm |
Maximum width (standard wheels) | 2550mm |
Standard wheels | 445/65 R22,5 |
Colour | Yellow |
Speed | 40km/h |
All weights and measurements are subject to earth moving tipper trailer specification and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.
