HookLoada HL260ST

25% more payload capacity than the HL210ST model.

Discover ultimate efficiency

Extra-long tri-axle roll off trailer constructed for pure power with a massive 26 tonne hooking potential. Maximise your return in investment with a trailer that is built with intelligence to provide every possible advantage in the field and on the road. HL260ST always holds its considerable value.

Grab your keys – it’s time to discover ultimate efficiency.

Design with intent

Reducing labour per tonne transported, improving efficiency and being more productive with existing resources. With rapid container exchange, the 26 tonne hookloader reduces precious hours wasted waiting during loading.

Operating one large capacity, 26 tonne roll off trailer has lower costs than keeping several tractors and trailers roadworthy with tyres, brakes, suspensions and more, all requiring maintenance.

Benefit from BIG scale

The HL260ST model sets new standards in terms of bulk carrying capacity with containers up to 7500mm long, resulting in fewer transport cycles. Low rolling resistance tyres and suspension significantly reduce power and fuel requirement.

More power.

More performance. More productivity.

Cross-sector. Cross-season.

Capable beyond your wildest dreams.

Delivering astute perfection

Delivering astute perfection, Stronga continue to develop optional equipment innovations for performance beyond market norms. In the video below, see the 26 tonne HookLoada fitted with the special hydraulic suspension option.

From agriculture to construction…

Imagine where your bespoke-built 26t roll off trailer could take you. 26 tonne roll off trailers from Stronga are well proven across a wide range of industries from agriculture to construction. Develop your own transport applications around this highly reliable, high capacity workhorse.

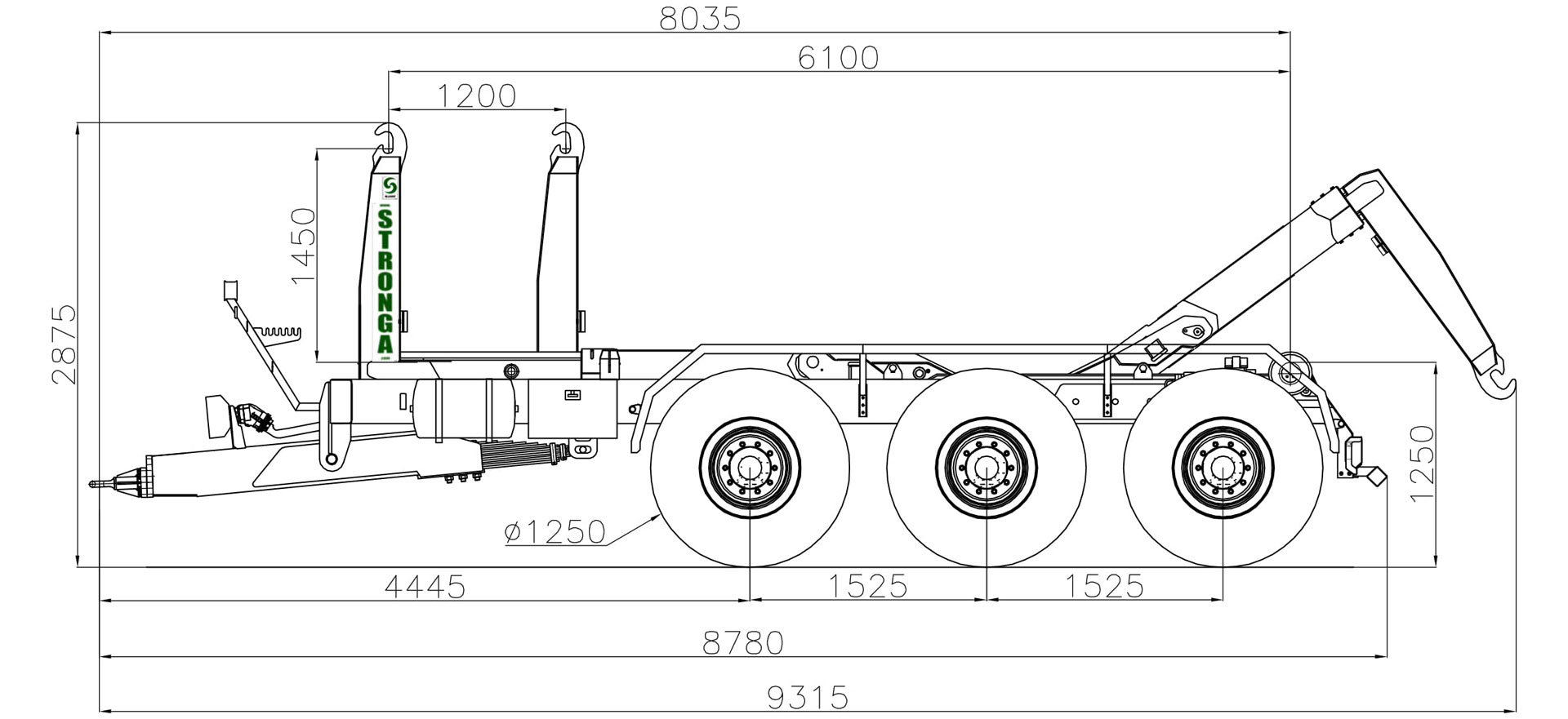

Key Benefits

Low roller height on standard wheels – 1250mm



  • Lower picking up angle with longer containers

Good hook lift trailer tipping angle - 50°



  • Tipping longer containers

Hook container length - 5400 - 7500mm. Optimal hook container length – 7000mm



  • Big bulk capacity potential

Length from tower to rear roller - 6100mm



  • For serious modern operations

Standard Specifications

BPW free steering front axle, 420x180 brake axles, 150x150 square beam. 10 stud, 2150mm track.
BPW free steering rear axle, 420x180 brake axles, 150x150 square beam. 10 stud, 2150mm track.
36t parabolic sprung suspension. 1525mm distance between axles.
Shockproof rubber mount drawbar.
Powerful hydraulic brakes on all wheels of the hooklift trailer.
Cable-type hand brake.
560/60 R22,5 Michelin CargoXBib radial tyres. 10 stud heavy-duty wheels.
Hydraulic container locking clamps.
Hydraulic rear axle stabilisers.
PowerBoosta™ – pair of booster cylinders, increasing tipping and uploading cycle power, removing the requirement for PTO, pump and oil tank. Watch video >
Two pipes to the tractor hydraulic system with distributor operated by remote control.
12 V electric system. Sealed loom. All lights super-bright LED.
3 position plate for bolting towing eyelet.
Swivel towing hitch. STR type. 50mm diameter eyelet.
Removable bumper at the rear of the hooklift trailer.
Manual telescopic drawbar support leg.

Optional Equipment

STR-214



CommandSteer™ - in-cab control – excellent manoeuvrability in reverse – free steering travelling forwards. Only on rear axle. Watch video >

STR-302



Load sensing for hydraulic brakes.

STR-303



WABCO air brakes on all wheels.

STR-304



Load Sensing Valve (LSV) for air brakes.

STR-305



Dual air and hydraulic brake system.

STR-308



Load Sensing Valve (LSV) for hydraulic suspension.

STR-707



Electronic Power Steering (EPS). Watch video >

STR-409



Air suspension with height controlling valve (AirLoada™ comes as standard when you buy STR-409). Watch video >

STR-410



Hydraulic suspension for optimal axle travel. Watch video >

STR-501



Multi-position sprung drawbar for high comfort at speed.

STR-508



Hydraulic drawbar for easy levelling and high comfort. Watch video >

STR-411



Front lift axle - Only with air or hydraulic suspensions. Watch video >

STR-802



Other tyre brands and tyre sizes available.
Contact us for more information >

STR-700



Auxiliary hydraulic connections with changeover valve at the rear of the roll off trailer.

STR-723



Auxiliary hydraulic connections with electrical changeover valve at the rear of the roll off trailer.

STR-710



Auxiliary connections with changeover valve on the hook tower.

STR-724



Auxiliary connections with electrical changeover valve on the hook tower.

STR-712



1500mm longer hook stroke.

STR-713



QuickLoada™ fast tipping and unloading system. Watch video >

STR-1037



Two super-bright LED adjustable rear working lights.

STR-900



Full length ultra-light aluminium mudguards.

STR-903



Hard plastic quarter mudguards, front and rear of the hooklift trailer.

STR-1000



Lockable steel toolbox. Various sizes available.
Contact us for more information >

STR-1001



Aluminium side rails to protect the hook lift trailer.

STR-505



Bolted-on ball towing hitch, Scharmuller type, 80mm diameter.

STR-506



Swivel towing hitch, Scharmuller type. 50mm diameter eyelet.

STR-1002



Rear towing eyelet mounting plate for VBG rear drawbar.

STR-1038



Rear mounted hydraulic brake connection.

STR-1039



Rear mounted light connection 7-pin socket.
Model HookLoada HL260ST
Gross weight (40km/h) 33500kg
Tare weight ca. 7200kg
Maximum hooking load 26000kg
Maximum tipping load 26000kg
Drawbar load 3500kg (4000kg*)
Hook height 1450mm
Hook tower Telescopic
Hook stroke 1200mm
Sprung suspension capacity 36000kg
Main cylinders 2 units
Oil requirement Own hydraulic
Minimum draft requirement 140kW (190PS)
Hydraulic pressure required 270 bar
Total length 8780mm
Maximum width (standard wheels) 2550mm
Standard wheels 560/60 R22,5
Connections to tractor -
Standard SS 3021

All weights and measurements are subject to roll off trailer specification and regional laws. Specification, weights and payload may vary on fast tow models.As we are continually improving our products, technical details, masses and measurements are given as reference values only.
