Tough. Compact. Nimble.
Tough enough for continuous contractor use, compact enough for small yards, nimble enough for tight corners; the HL014S hook trailer offers all the versatility and reliability you need at a fantastic price. HL014S is well-suited to tractors from 80-140HP. 4500mm optimum length containers can be tipped to a class-leading 56° angle for superb heaping on small sites.
Mini just got mighty
Great investment for small-medium size contractors
101 hook trailer applications
The market-leading 14 tonne hook trailer is proving to be an extremely flexible transport solution for small-to-medium size contractors across a wide range of materials and sectors. Imagine how you could utilise the modern 14 tonne hook trailer to transport heavy plant; or to cart soil, rubble and many more materials.
Key Benefits

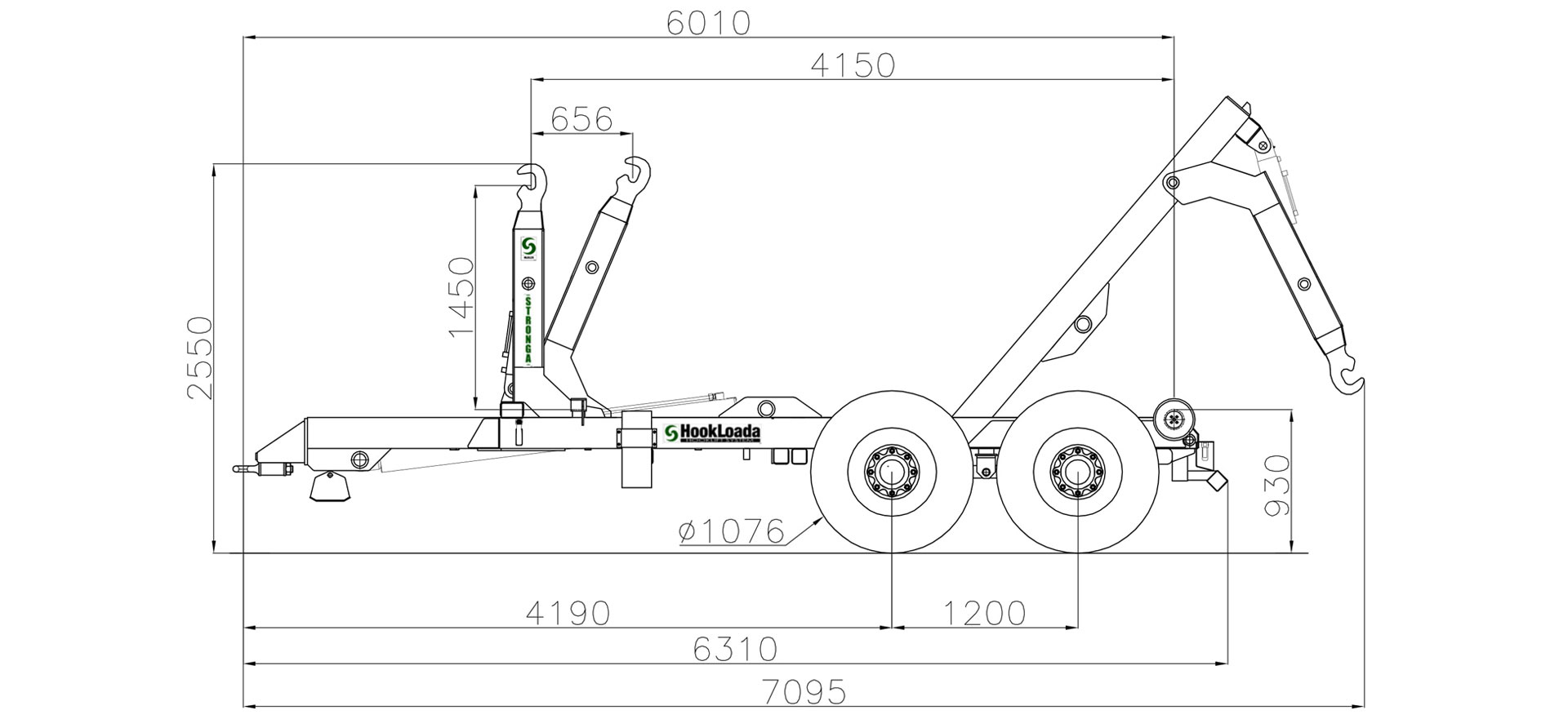

Roller height on standard wheels – 930mm
- Low container height
- Excellent stability
Excellent tipping angle - 56°
- Clean material ejection
- Excellent heaping ability
Container length - 4440 - 5000mm
- Compact, useful container length
Length from tower to rear roller - 4150mm
- Manoeuvrable in confined spaces
- Most compact tandem axle trailer
Standard Specifications
4840kg @ 40km/h
3550 kg @ 65km/h
Optional Equipment
STR-215
BPW commercial 410x120mm brake axles, 120x120mm square beam.
STR-302
Load sensing for hydraulic brakes.
STR-303
WABCO air brakes on all wheels of the roll off trailer.
STR-304
Load Sensing Valve (LSV) for air brakes.
STR-305
Dual air and hydraulic brake system.
STR-700
Auxiliary hydraulic connections with changeover valve at the rear of the trailer.
STR-701
Hydraulic container locking clamps.
STR-710
Auxiliary connections with changeover valve on the hook tower.
STR-503
3 position plate for bolting towing eyelet.
STR-903
Hard plastic quarter mudguards, front and rear.
STR-900
Full length ultra-light aluminium mudguards.
STR-1001
Aluminium side protection rails.
STR-1037
Two super-bright LED adjustable working lights at the rear of the hooklift.
STR-1002
Rear towing eyelet mounting plate for VBG rear drawbar.
STR-1038
Rear mounted hydraulic brake connection.
STR-1039
Rear mounted light connection 7-pin socket.
| Model | HookLoada HL014S |
|---|---|
| Gross weight (40km/h) | 17000kg |
| Tare weight | ca. 3000kg |
| Maximum hooking load | 14000kg |
| Maximum tipping load | 14000kg |
| Drawbar load | 3500kg |
| Hook height | 1450mm |
| Hook tower | Tiltable |
| Hook stroke | – |
| Sprung suspension capacity | 14000kg |
| Main cylinders | 1 unit |
| Oil requirement | 12,5 litres |
| Minimum draft requirement | 100HP |
| Hydraulic pressure required | 200 bar |
| Total length | 6450mm |
| Maximum width (standard wheels) | 2550mm |
| Standard wheels | 560/45 R22,5 |
| Connections to tractor | 3 x double acting |
| Standard | SS 3021 |
All weights and measurements are subject to hook trailer specification and regional laws. Specification, weights and payload may vary on fast tow models. As we are continually improving our products, technical details, masses and measurements are given as reference values only.
